Atlas Copco G110-355 VSD | Technical Specifications

High-Efficiency Air/Oil Separator
Reduces pressure drop and lowers energy consumption.
Low oil consumption reduces maintenance costs and extends service life.
The optimized air/oil separator design reduces oil carryover and improves operating stability.

Smaller Footprint
Saves installation space, allowing more machines to be installed within a limited area.

Screw Airend
Asymmetric rotor profile and carefully selected bearings.
High-performance rotors significantly reduce operating costs.

Custom-Designed Motor
Custom-designed motor with Class F insulation ensures continuous and reliable operation even in harsh environments.
Ensures long-term stable operation under demanding conditions.

High-Efficiency Cooler
Maintains the airend discharge temperature within an optimal range, reducing downtime caused by high temperatures.
The stainless steel water cooler core provides enhanced corrosion resistance.
Optimized design reduces maintenance costs and ensures more reliable performance.

Elektronikon® MK5 & SmartLink Control System
Clear and intuitive indicators provide quick access to important settings and data.
Monitors the operating and maintenance status of the equipment.
SmartLink enables remote monitoring of the compressor’s operating status.

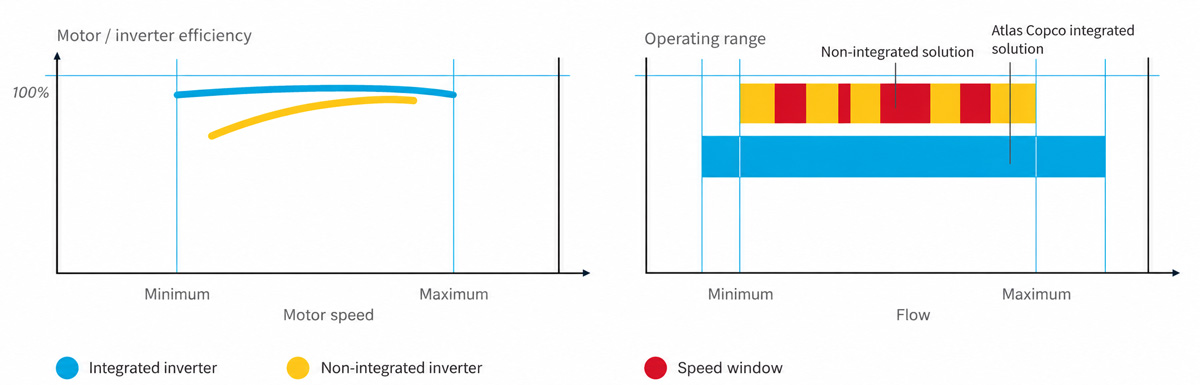

Integrated Variable Frequency Drive Advantages

Elektronikon controls the compressor and the integrated variable frequency drive, ensuring safe operation.
The working pressure can be freely selected between 3.5–10 bar, helping reduce electricity costs.
The VSD and motor are specially designed (with bearing protection) to achieve high efficiency across the permitted speed range.
The specially designed variable speed motor provides sufficient cooling capacity for both the motor and compressor.
All Atlas Copco G(L) VSD compressors are EMC tested and certified. Compressor operation will not affect external equipment, and external equipment will not affect compressor operation.
Dedicated mechanical improvements eliminate vibration concerns throughout the variable speed range.
The“speed window”that can negatively affect energy efficiency and stable pressure operation is eliminated. Air flow regulation range: 30–100%.
The network pressure band is maintained within 0.10 bar / 1.5 psi.

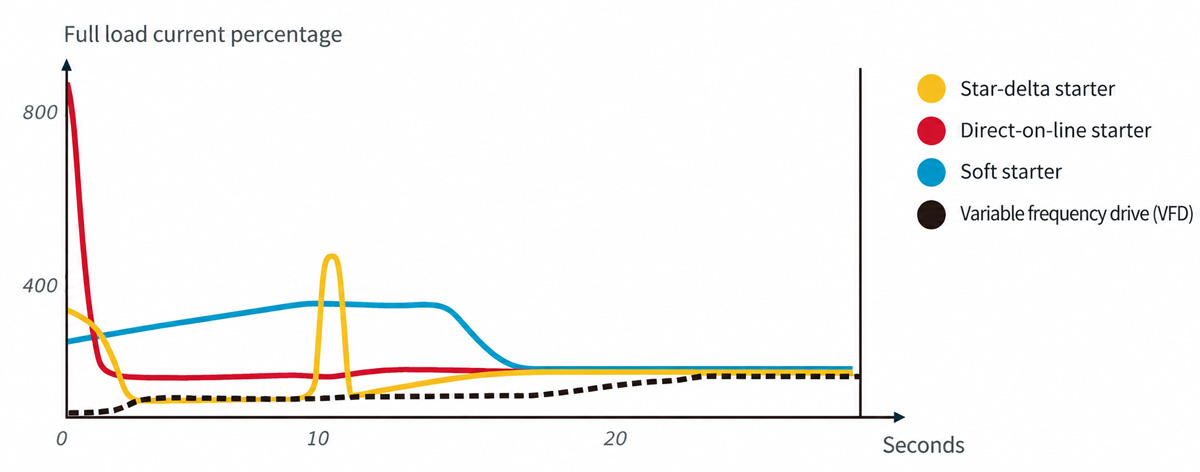

No Peak Current

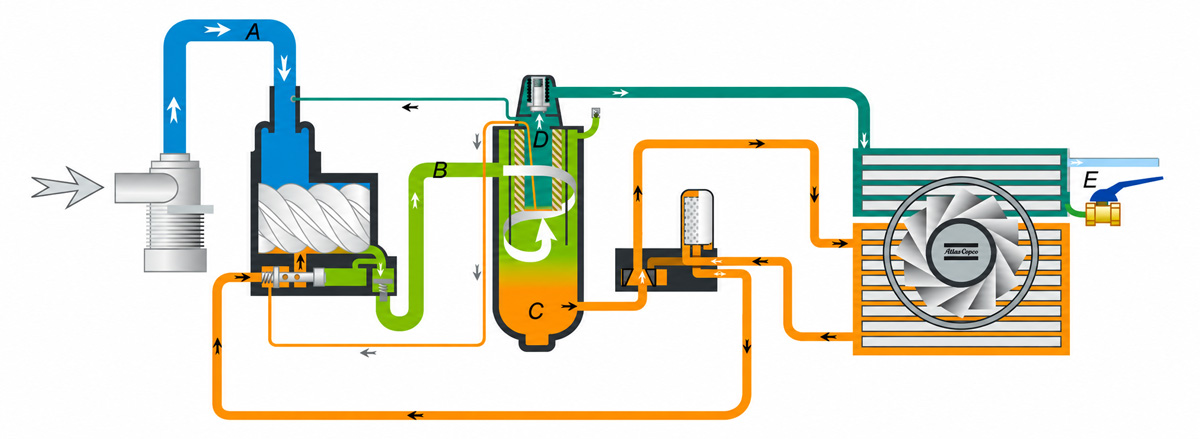

Fixed Speed Flow diagrams

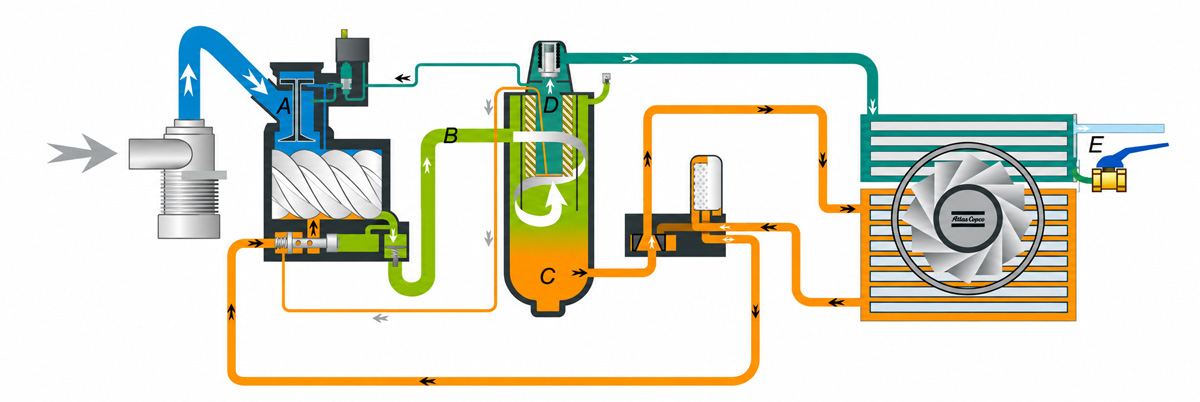

Variable Speed Flow diagrams

Inlet Air、Air/Oil Mixture、Oil、Wet Compressed Air、Condensate

G 90-355 (Pro) 50Hz Fixed Speed Technical Specifications

G 110-355 (Pro/VSD+) 50Hz Variable Speed Technical Specifications

Available Options
