Atlas Copco GVS 16 -630A Vacuum Pumps | Technical Specifications
Model: GVS16 / 25 / 40 / 60 / 100 / 200 / 300 / 470 / 630A
Ultimate pressure: 1.0-0.1 mbar / 0.8-0.1 Torr
Nominal displacement: 16-840 m³/h (9.4-494 Cfm)
Lubrication style: Lubricated
Power: 0.55-18.5 kW (0.75-25 hp)
Voltage: 380V & Customized Voltage Options
Place of origin: Wuxi, Jiangsu
The GVS 16–630 A series uses proven oil-lubricated rotary vane technology for reliable, durable performance.
The GVS 16–630 A series comes standard with a built-in gas ballast valve for improved water vapor handling. Its oil recovery design enables continuous operation from atmospheric pressure to ultimate pressure. The exhaust filter features an integrated bypass valve to prevent pump overpressure.
The GVS 16–630 A series features an oil separation circuit that reduces oil mist in the exhaust gas. An inlet non-return valve prevents reverse flow when the vacuum pump stops and also prevents lubricating oil from being drawn back into the inlet.
Benefits to You
Compact, space-saving design for easy installation.
Durable design with optimized oil retention for high reliability at any operating pressure.
Low maintenance requirements, with optimized shaft speed for reduced wear.
Low noise and minimal vibration across the full pressure range.
Lower vacuum pump operating temperatures than comparable products, helping extend lubricant life.
Ready for Use
The GVS 16–630 A rotary vane vacuum pumps are available with all options and accessories required for rough vacuum applications.

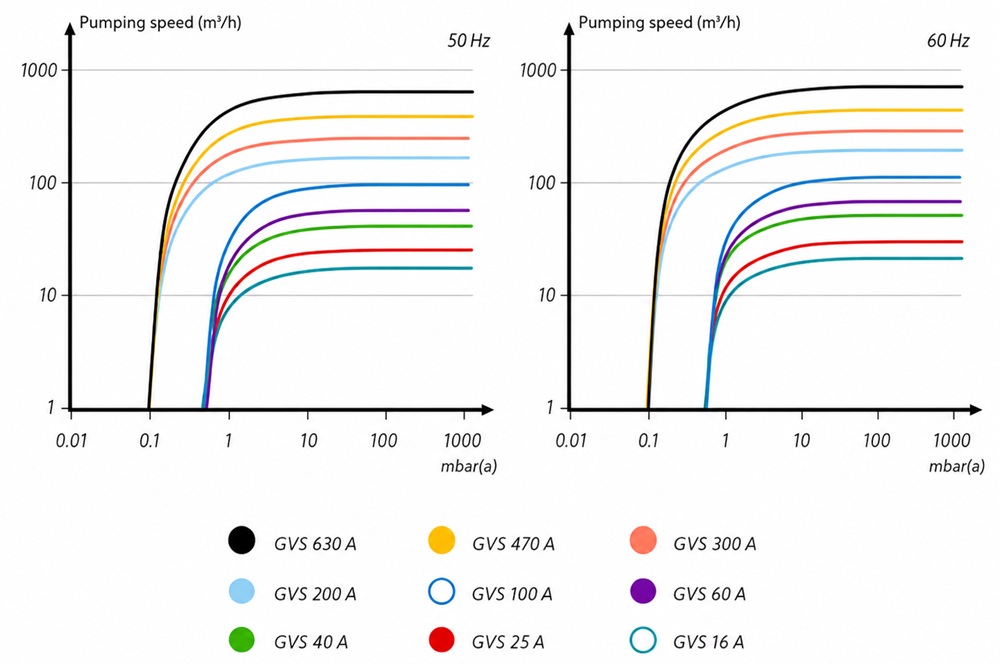

Performance Curve
Vacuum performance is measured at the inlet pressure and at 20°C, with an accuracy of ±10%.
Technical Specifications
| Type | Nominal displacement | Ultimate pressure | Power(1ph) | Power(3ph) | Water Vapor Handling Capacity |
| m3/hr / cfm | mbar / Torr | kW / hp | kW / hp | mbar / Torr / kg/h | |
| GVS 16 A | 16 / 9.4 | 1.0 / 0.8 | 0.55 / 0.75 | 0.55 / 0.75 | 15 / 11 / 0.05 |
| 19 / 11.2 | 0.65 / 0.88 | 0.65 / 0.88 | |||
| GVS 25 A | 26 / 15.3 | 0.9 / 1.22 | 0.9 / 1.22 | 15 / 11 / 0.08 | |
| 31 / 18.3 | 1.1 / 1.50 | 1.1 / 1.50 | |||
| GVS 40 A | 44 / 25.9 | 0.5 / 0.4 | 1.1 / 1.50 | 1.1 / 1.50 | 30 / 23 / 0.76 |
| 53 / 31.2 | 1.5 / 2.04 | 1.5 / 2.04 | |||
| GVS 60 A | 59 / 34.8 | / | 1.5 / 2.04 | 30 / 23 / 1 | |
| 71 / 41.8 | 1.8 / 2.45 | ||||
| GVS 100 A(1) | 98 / 57.4 | 2.2 / 2.99 | 30 / 23 / 1.6 | ||
| 117 / 68.9 | 3.5 / 4.76 | ||||
| GVS 200 A (1) | 180 / 106 | 0.1 / 0.1 | 4 / 5.44 | 30 / 23 / 3.4 | |
| 220 / 129.5 | 5.5 / 7.48 | ||||
| GVS 300 A (1) | 280 / 165 | 5.5 / 7.48 | 10 / 8 / 1.3 | ||
| 340 / 200 | 6.3 / 8.57 | ||||
| GVS 470 A | 470 / 277 | 9.2 / 12.00 | 15 / 11 / 5 | ||
| 570 / 366 | 11 / 15.00 | ||||
| GVS 630 A | 700 / 412 | 15 / 20.39 | 40 / 30 / 17 | ||
| 840 / 494 | 18.5 / 25.15 |
Ideal For
The GVS A series is ideal for applications with high water vapor content, such as plastics processing, clay molding, pipeline drying, salad cooling, and freeze drying.
Food Processing: General Packaging, Cheese Processing, Vacuum Cooling of Produce
Meat Packaging: Fresh and Cooked Meat, Poultry, Tumbling, Filling and Sealing
Woodworking: CNC Cutting and Routing, Loading and Unloading Systems
Rubber and Plastics: Thermoforming Applications, Extruder Barrel Degassing, Mold Evacuation, Material Conveying
R&D Systems: Central Laboratory Vacuum Systems
Electronics: Component Pick-and-Place, PCB Manufacturing, Central Vacuum Systems
Material Handling: Vacuum Lifting, Pick-and-Place, Bulk Material Handling, Pneumatic Conveying, Bottling, Canning, Vacuum Wastewater Removal
Paper and Printing: Printing Applications (Paper Feeding, Offset Printing, etc.), Binding Equipment Including Saddle Stitching and Perfect Binding, Newspaper Printing, Envelope Processing Equipment
Pharmaceutical Vacuum: Various Evacuation Applications
Environmental Applications: Soil Remediation and Related Processes
Modified Atmosphere Packaging: Oxygen-Compatible Vacuum Pump Versions
