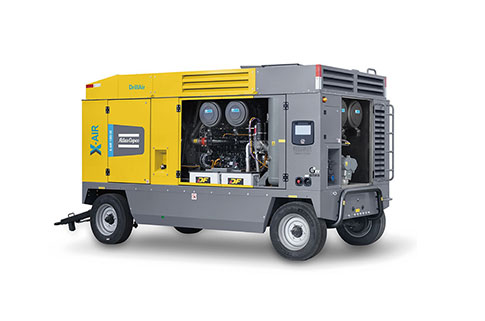

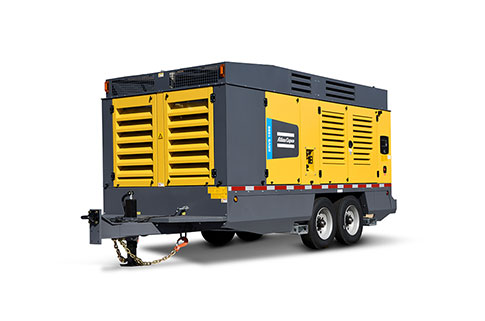

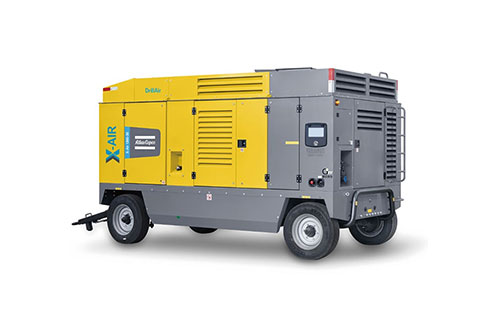

Atlas Copco Large Diesel Air Compressor X-AIR
Free Air Delivery：26.0-43.4 m³/min（918-1532 cfm）
Model：X-AIR
X-AIR with Atlas Copco's mature and advanced control system, it monitors the whole machine's operating conditions in all directions, intelligently adjusts the equipment's operating status, reduces losses and improves work efficiency; at the same time, it takes into account the equipment's self-protection and easy-to-operate ergonomic design. Atlas Copco's unique Drilling Expert system is fitted as standard or optional to intelligently control the pressure and flow rate, and its Dynamic Air Volume Adjustment function can increase the extra air volume by 10% and improve the feed rate by 30%.
The engine manufacturers jointly developed the engine adapted to the working conditions of the air compressor, with strong power, excellent fuel economy and lower maintenance cost;
Based on the actual needs of customers, adjust the air circuit regulation. Standard or optional electronic thermostatic valve, through the electrical signal control air circuit system, completely solve the problem of low temperature icing equipment.
Atlas Copco X-AIR Technical data
| Performance | 33333 | X-AIR 960-23 | X-AIR 1100-25 | X-AIR 1280-30 | X-AIR 1300-30 | X-AIR 1300-35 | X-AIR 1500-20 |
| Working pressure | bar | 18/23 | 18/25 | 15/25/30 | 15-30 | 15-35 | 15-20 |
|
Max. free air delivery |
m³/min | 28.0/26.0 | 30.8/27.8 | 36.5/34.3/32.1 | 38.8-35.4 | 38.8-32.7 | 43.4-41.5 |
| compression class | 2 | 2 | 2 | 2 | 2 | 2 | |
| Compressor oil | L | 78 | 78 | 80 | 87 | 87 | 87 |
| Engine oil | L | 400 | 400 | 680 | 755 | 755 | 755 |
| Urea tank capacity | L | 45 | 45 | 58 | 72 | 72 | 72 |
| Engine | |||||||
| Model | Cummins | L9CS4 400C | L9CS4 430C | M14CSIV37C | M14CSIV41C | M14CSIV41C | M14CSIV41C |
| Number of cylinders | 6 | 6 | 6 | 6 | 6 | 6 | |
|
Power output @ normal shaft speed |
kW | 294 | 316 | 368 | 412 | 412 | 412 |
| Nominal speed | rpm | 2040/1880 | 1800/1640 | 1900/1760/1660 | 1850-1700 | 1850-1550 | 1820-1720 |
| Unload speed | rpm | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 |
| Diesel engine oil volume | L | 27 | 27 | 43 | 45 | 45 | 45 |
| Cooling system volume | L | 52 | 52 | 57 | 74 | 74 | 74 |
| Dimensions | |||||||
| Enclosure Size(LWH) | mm | 3670*1870*2170 | 3670*1870*2170 | 4000*2140*2465 | 4265*2220*2500 | 4265*2220*2500 | 4265*2220*2500 |
| Box weight | kg | 4285 | 4360 | 5750 | 6600 | 6600 | 6550 |
| Trailer size(LWH) | mm | 4500*2090*2710 | 4500*2090*2710 | 4633*2140*2751 | 4870*2220*2770 | 4870*2220*2770 | 4870*2220*2770 |
| Trailer weight | kg | 4685 | 4750 | 6250 | 7000 | 7000 | 6950 |
